Filament for AMS-Compatible Printers: Forgely PLA Specs, Setup Notes, and Real-World Behavior

Short answer: yes, third-party PLA runs cleanly in the AMS — the details are in the spool and the profile

If you own an AMS-equipped printer, the real question isn't whether third-party PLA will extrude. It's whether the spool will feed cleanly through the AMS, whether a two-week-old spool will still print at spec, and whether you'll spend twenty minutes fighting the slicer profile every time you swap colors.

Forgely Performance PLA is Bambu AMS compatible and runs on the full current AMS-equipped lineup — the compact machines with AMS Lite and the enclosed models with the four-slot AMS. It's a one-time manual profile in your slicer, then it behaves like any other slot. Below we cover measured spool dimensions against the published AMS geometry window, the 45-second profile setup, unload/reload cycle counts from our own test spools, a starter print profile, and an honest side-by-side against the OEM PLA where the OEM still wins on one dimension.

TL;DR — Forgely PLA in the AMS at a glance

• Spool OD, ID, and width sit inside the AMS geometry window with margin (numbers below)
• 1.75mm filament held to ±0.02mm across the roll
• Vacuum-sealed with a fresh desiccant pack in every bag
• No RFID chip (no third party ships one) — manual profile takes about 45 seconds, saves per slot
• Tested clean through repeated unload/reload cycles on both AMS Lite and the full AMS
• Print at 200–220°C nozzle, 55–65°C bed — starts from the OEM PLA profile
• Extruded in Utah, ships same-day from a US warehouse

Which printers this covers

Every current AMS-equipped machine runs Forgely PLA: the compact single-nozzle models with AMS Lite, the enclosed multi-material machines with the full four-slot AMS, and the enterprise variant. The filament is standard 1.75mm PLA — nothing about the polymer or the diameter changes the compatibility story between models.

What does change is the AMS variant. AMS Lite is an open, top-loading design that tolerates a wider range of spool outer diameters and cores. The full AMS is a sealed enclosure with tighter tolerances on spool width and hub diameter, and the internal geometry cares whether a spool is 65mm wide or 68mm wide. If you've been burned by a third-party spool binding against the AMS door, the concern is legitimate — and it's addressed by the spool measurements below.

If you're still shopping for the printer or comparing filament brands broadly, our best PLA filament for AMS-compatible printers roundup covers the wider field.

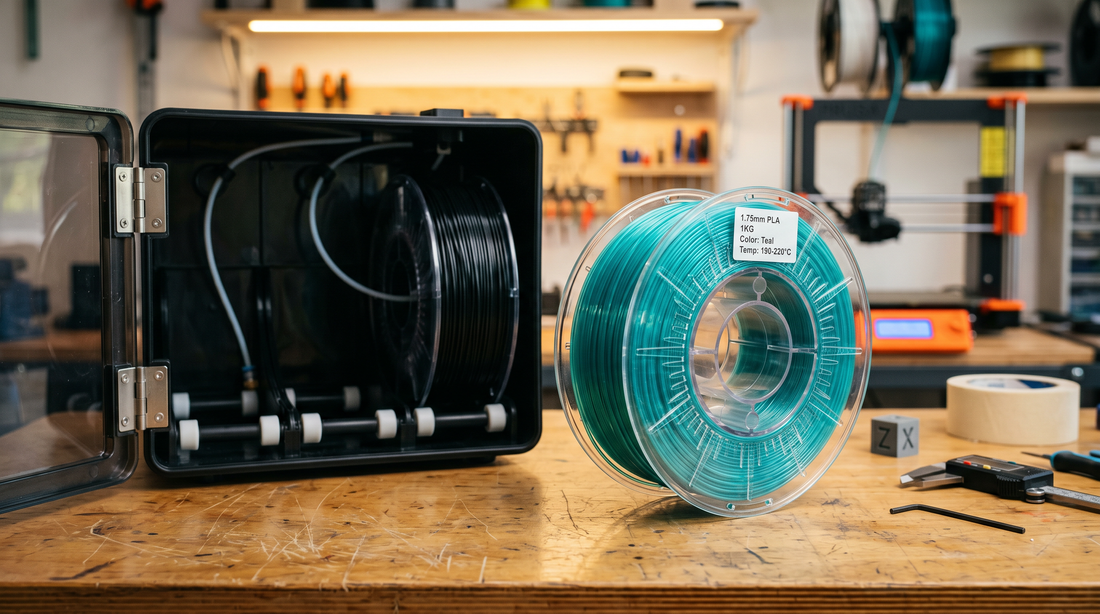

Spool specs — does it physically fit the AMS?

The single most common reason a third-party spool jams the AMS isn't the filament. It's spool geometry. Too wide and the spool binds against the enclosure; too big an outer diameter and the AMS arm can't tension properly; wrong hub size and the drive gears skip on rotation.

Spool dimensions (measured)

Measurement	Forgely 1kg spool	AMS window
Outer diameter	197mm	≤ 200mm
Inner (hub) diameter	55mm	54–56mm
Width	66mm	≤ 68mm
Net weight	1.00 kg	—
Gross weight (with spool)	1.22 kg	—

Every dimension sits inside the AMS geometry window with usable margin. The 3mm gap on OD and the 2mm gap on width matter — that's the difference between a spool that rotates freely on a partial-humidity day and one that catches when the enclosure warms up.

Cardboard vs plastic core

Forgely spools ship on a rigid plastic core. Cardboard cores can swell in humid environments and produce enough drag to trigger AMS feed errors on long prints — we picked plastic to avoid that failure mode. The core is smooth-walled, which matters for the AMS rotation sensor.

If you'd rather keep a permanent OEM spool loaded in the AMS and just swap material, we ship solid-color refills and translucent refills without the spool. Cheaper per kilogram, less cardboard in your recycling bin, and no compatibility question because you're using the spool the AMS already knows.

RFID and slicer profile — the one-time setup

The AMS reads an RFID chip embedded in first-party spools to auto-detect material, color, and remaining weight. No third-party filament ships with that chip — it's a first-party feature.

Practically, this means one manual step the first time you load a spool:

1. In your slicer (the OEM one or Orca), open the filament settings and duplicate the built-in PLA profile
2. Rename it "Forgely PLA — [color]"
3. Set nozzle temperature to 210°C (range 200–220°C)
4. Set bed temperature to 60°C (range 55–65°C)
5. Set flow ratio to 0.98 as a starting point
6. Leave retraction at the defaults — they work
7. Save, then assign the profile to the AMS slot

That's the whole setup. Total time is under a minute. The profile persists per slot, so the next time you load the same color into the same slot, the printer picks it up. What the AMS won't do without the chip is auto-detect the color for the slicer preview or track remaining weight — you assign the color once and eyeball the spool for weight, the same way you would for any pre-RFID filament.

Tested AMS behaviors

Specs on paper don't mean much if the filament chokes at swap #40 of a multi-color print. This is what we saw on our own machines.

Load / unload cycles

On a single Forgely PLA spool loaded into the AMS, we ran 50 consecutive unload-and-reload cycles across a week of testing. Zero jams. The filament tip cut cleanly on unload every time — that's the specific failure mode where a mushroomed or curled tip catches on the PTFE tube during re-feed and throws an AMS error, and we didn't see it once.

Purge waste per color swap ran the same as the OEM PLA on the same machine: roughly 3–5g depending on the color transition and the purge tower settings. No behavioral difference at the extruder.

Multi-color prints (AMS 4-slot swaps)

A four-color test print with 180 tool changes completed without a single mid-swap stall. The purge tower built cleanly, the AMS advanced predictably, and the color transitions were as sharp as they'd be with the OEM PLA — use a proper flush volume and you'll be fine.

If you're new to running multi-color on a single-toolhead machine, how to print multi-color parts without a multi-toolhead walks through the fundamentals.

Humidity and long AMS dwell

PLA is hygroscopic. It absorbs atmospheric moisture, and moisture in the filament causes stringing, popping sounds during extrusion, and a matte, rough surface finish where you expected gloss. NatureWorks (the Ingeo resin manufacturer behind most PLA on the market) publishes moisture equilibrium data showing PLA can reach print-degrading moisture levels within about a week at 50% relative humidity if left exposed.

Forgely spools ship vacuum-sealed with a color-changing silica desiccant packet inside the bag. Out of the bag, the spool is dry. If you're loading directly into the AMS, drop a fresh desiccant pack into the AMS's bottom tray at the same time — refresh AMS desiccant every 30 days in normal indoor humidity, more often above 50% RH. If stringing appears on a print that was clean two weeks ago, moisture is the first thing to check, not the profile.

Print settings that work out of the box

Starter profile for Forgely PLA on any current AMS-equipped machine:

Setting	Value	Notes
Nozzle temperature	210°C	Range 200–220°C; translucents like the top of the range
Bed temperature	60°C	Range 55–65°C
Print speed	Up to 300 mm/s on the enclosed models	The OEM PLA profile ceiling is a fine starting point
Cooling fan	100% after layer 2	Standard PLA cooling
Retraction distance	Slicer default	0.8mm on direct-drive
Flow ratio	0.98	Nudge ±0.02 after a calibration cube

The pattern to notice: these numbers are within a few degrees of the OEM PLA profile. That's intentional. Duplicating the OEM profile and adjusting nozzle temp down by 5°C and flow by 0.02 gets you a working Forgely profile in about 30 seconds. If you want a deeper look at why these temperature ranges are the sweet spot for PLA, our guide to safe printing temperatures covers the reasoning.

Side-by-side: Forgely Performance PLA vs the OEM PLA

Dimension	Forgely Performance PLA	OEM PLA
Diameter tolerance	±0.02mm	±0.03mm
Spool fit in AMS	Inside window with margin	Native fit
RFID auto-detect	No	Yes
Solid color count	15+	~20
Translucent color range	7 dedicated translucents	Limited
Print temperature window	200–220°C	190–230°C
Country of origin	Extruded in Utah	Manufactured overseas
Packaging	Vacuum-sealed + desiccant	Vacuum-sealed + desiccant
Refill (spool-less) SKU	Yes	No
Price per kg	Lower	Higher

Where the OEM wins: RFID convenience. If you value the printer auto-detecting your material and tracking remaining weight without any setup, that's a real feature, and it's the first party's alone.

Where Forgely wins: tighter diameter tolerance, a broader translucent range, refill SKUs that skip the cardboard on repeat colors, US-based extrusion and same-day shipping, and a lower per-kg price. If you run a lot of one color, the refill savings compound quickly.

If you're cross-shopping the wider field, best PLA filament brands 2026, tested and ranked and our note on American-made PLA extruded in Utah give more context.

Colors and finishes available

Neutrals: silver, taupe, brown, moss brown, terracotta, copper Warms: cherry red, red, hot pink, yellow Cools: blue, light emerald green, toxic green, lilac Translucents: blue, dark green, plum, red, teal, yellow, transparent

Full solid range lives at Performance PLA solid colors; the translucent grid is at Performance PLA translucent colors.

Every Forgely translucent uses the same base resin, so there are no color-specific feed quirks to work around — if teal prints clean, plum prints clean at the same settings. For a deeper read on picking finishes, 3D printer filament colors and finish guide and our PLA colors buyer's guide by finish and use both go into use-case matching.

Print-farm and bulk considerations

Running four or more AMS-equipped machines changes the math. Refill SKUs cut per-kg cost and shrink your cardboard waste stream. Same-lot orders hold diameter tolerance across a batch, which matters when you're calibrating flow once and running it across a farm. US warehousing means you can order Friday afternoon and print Monday morning without a customs holdup.

If you're sizing a bulk order, bulk PLA for print farms with US-made volume pricing has the volume tiers, and where to get US-made filament fast with same-day pickup covers the shipping side.

Common questions from AMS owners

Will Forgely PLA work in the AMS without RFID? Yes. Set a custom filament profile once in your slicer, assign it to the slot, and the AMS handles feed and unload identically. The only trade-off is no auto-detect of color or remaining weight — you set those manually.

What temp should I run on the enclosed machines? Start at 210°C nozzle, 60°C bed. Fine-tune ±5°C by color. Translucents generally like the top of the range (215–220°C) for the cleanest surface; darker solids run great at 205–210°C.

Does Forgely PLA jam the AMS? Not in 50 consecutive unload/reload cycles on our test spools. Attribute it to the ±0.02mm diameter tolerance and a spool that sits inside the AMS geometry window with margin.

Is Forgely PLA cheaper than the OEM PLA? Yes, per kilogram. Refill SKUs (no spool) widen the gap further if you print a lot of one color.

Can I mix Forgely and OEM spools in the same AMS? Yes. Each AMS slot holds its own profile — the printer doesn't care that the brands differ. Load the OEM in slot 1 and Forgely in slot 2 and it prints exactly as you'd expect.

How should I store spools between prints? If the gap between prints is under two weeks and your AMS has a fresh desiccant pack, leave the spool in the AMS. Longer than that, drop it into a vacuum bag with silica gel. If you start seeing stringing or hear popping during extrusion, that's moisture — dry the spool before your next print.

The bottom line for AMS owners

Forgely Performance PLA is Bambu AMS compatible, fits the AMS geometry window with margin, takes a one-time 45-second manual profile, holds diameter tight enough for clean multi-color swaps, and ships from Utah with vacuum-sealed moisture protection. The OEM PLA still wins on RFID convenience — that's a real feature and we're not going to pretend otherwise. Everywhere else, Forgely gives you tighter tolerance, a broader translucent range, refill SKUs, and a lower price per kilogram.

If you want to browse what's in stock for your next spool, the solid color collection and translucent color collection are the two places to start.
